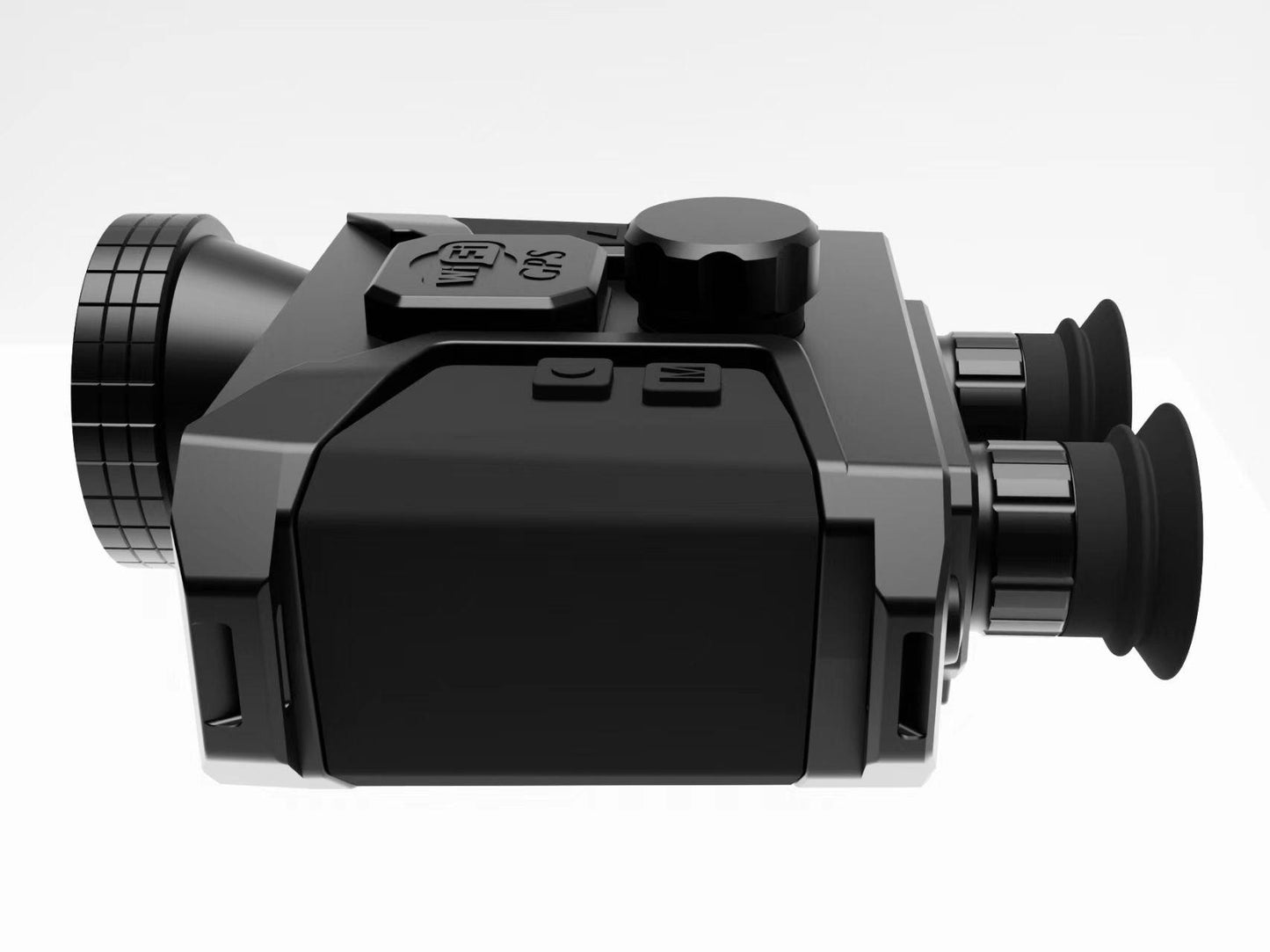

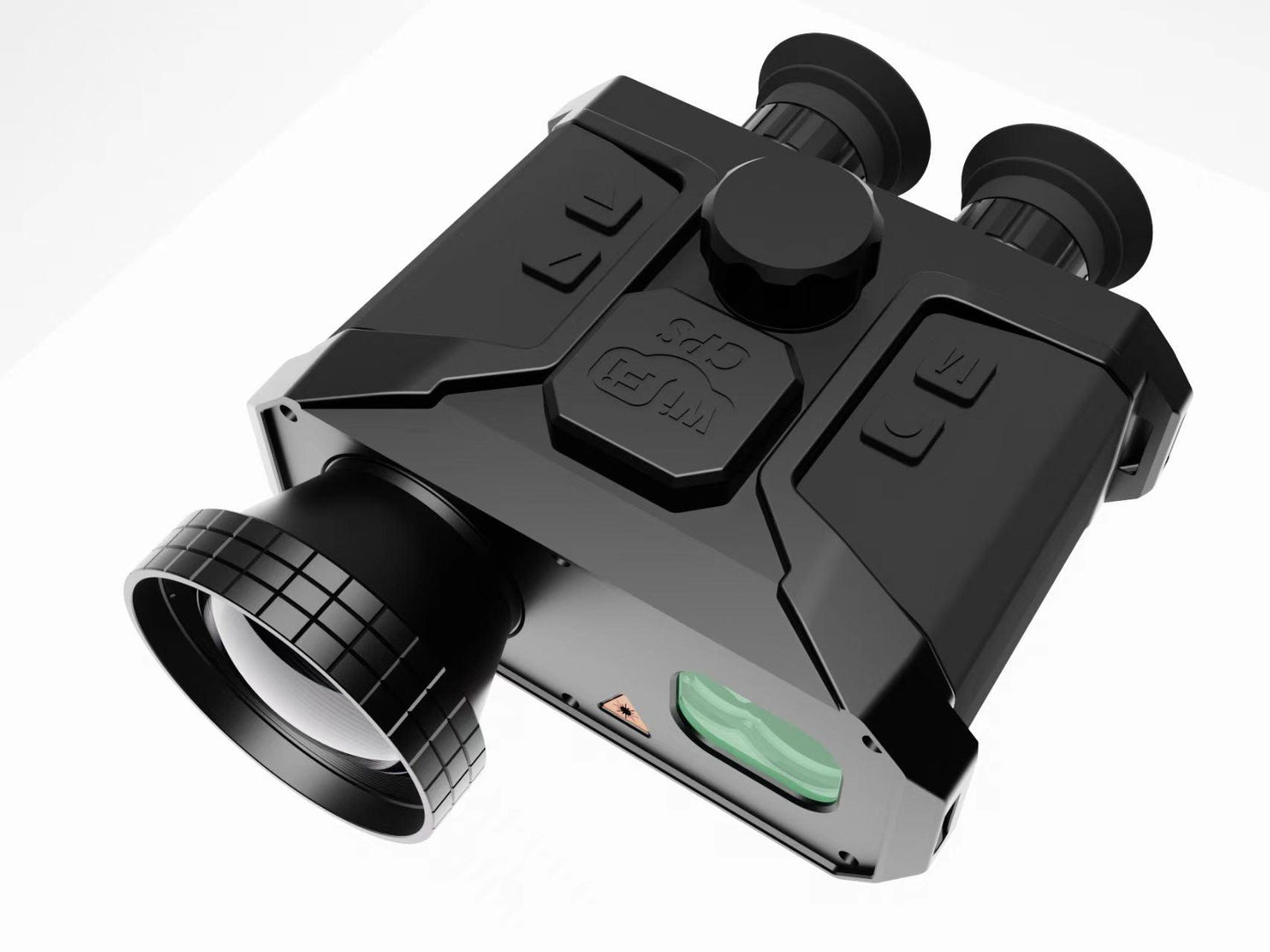

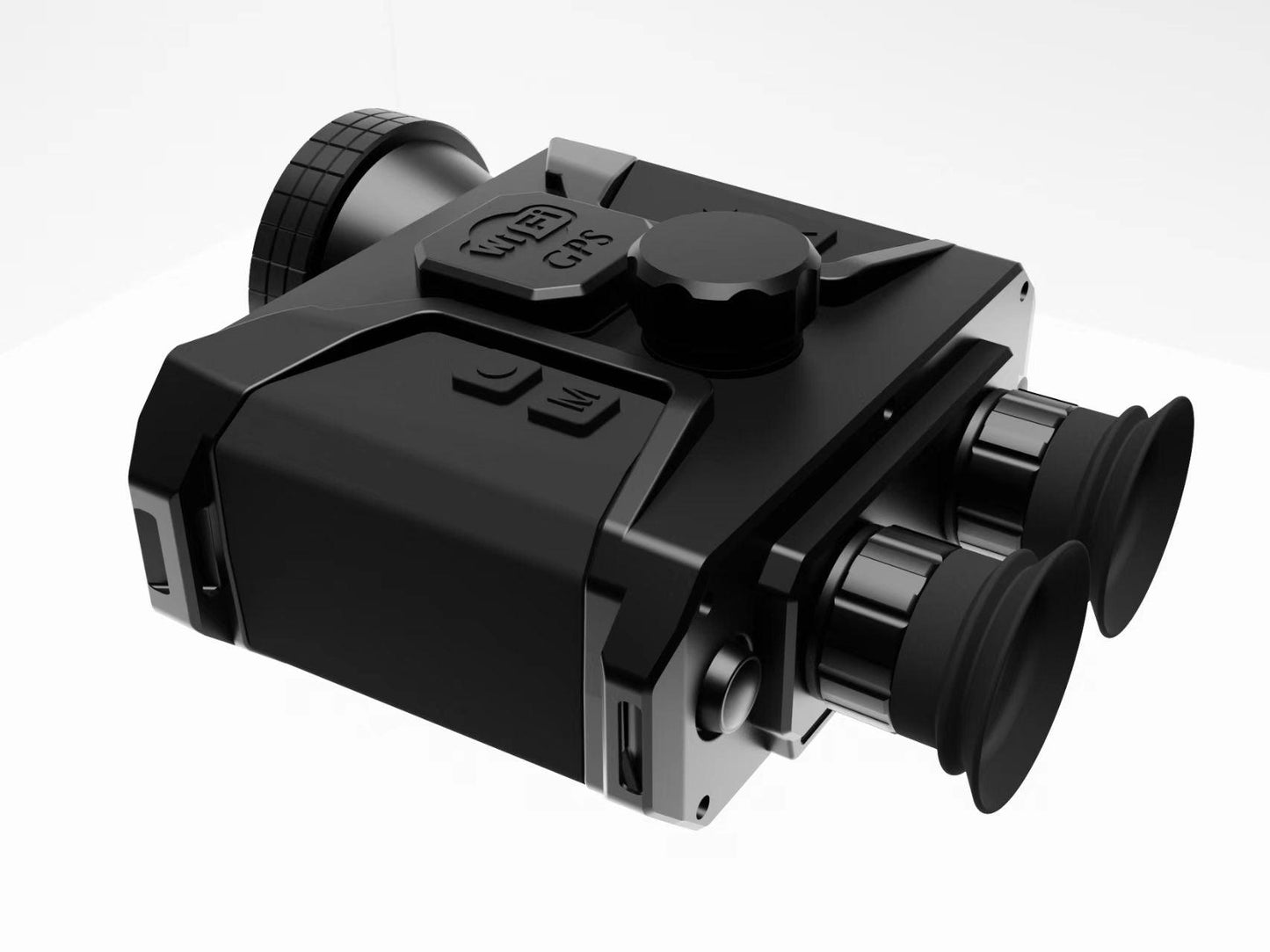

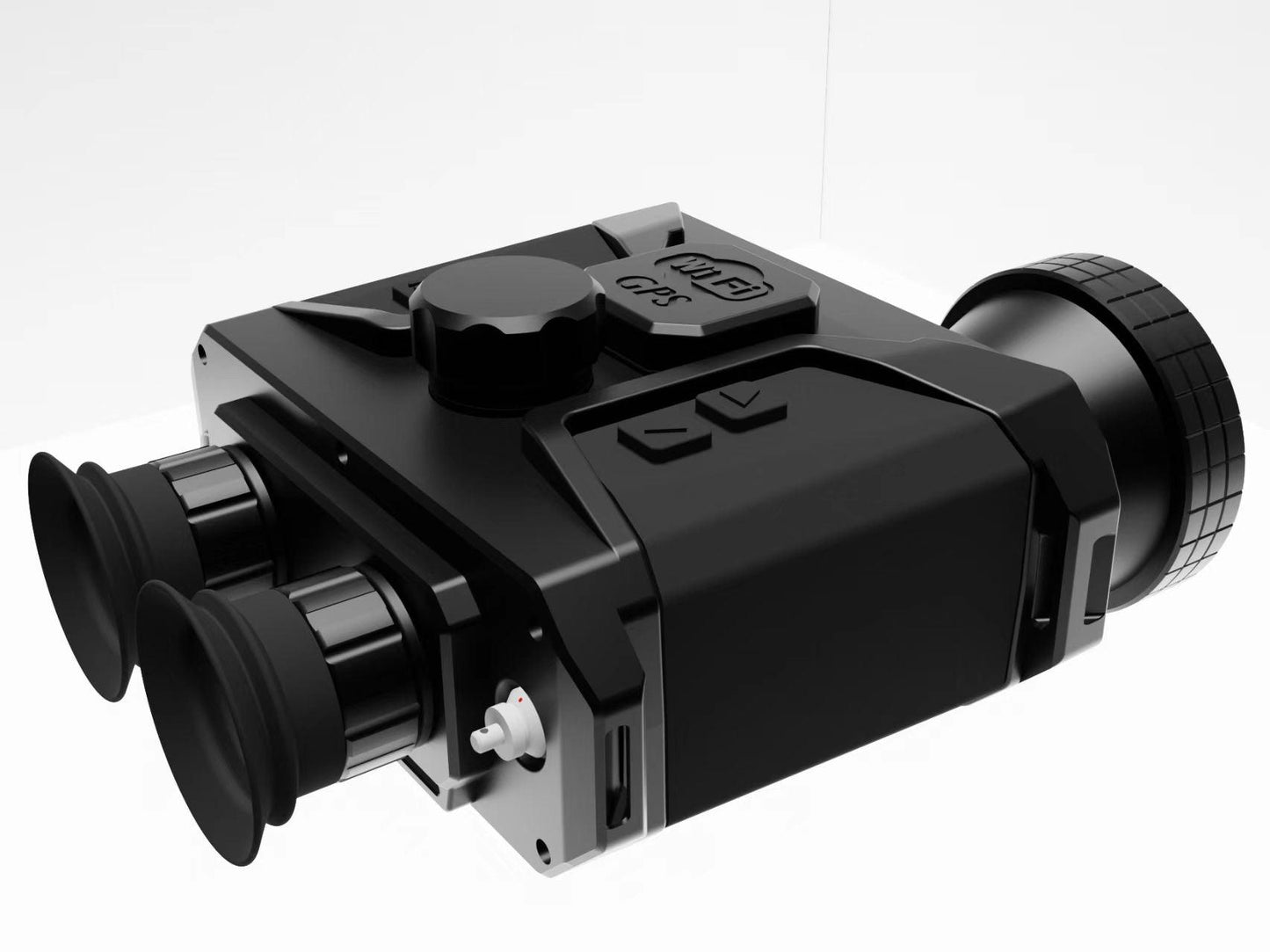

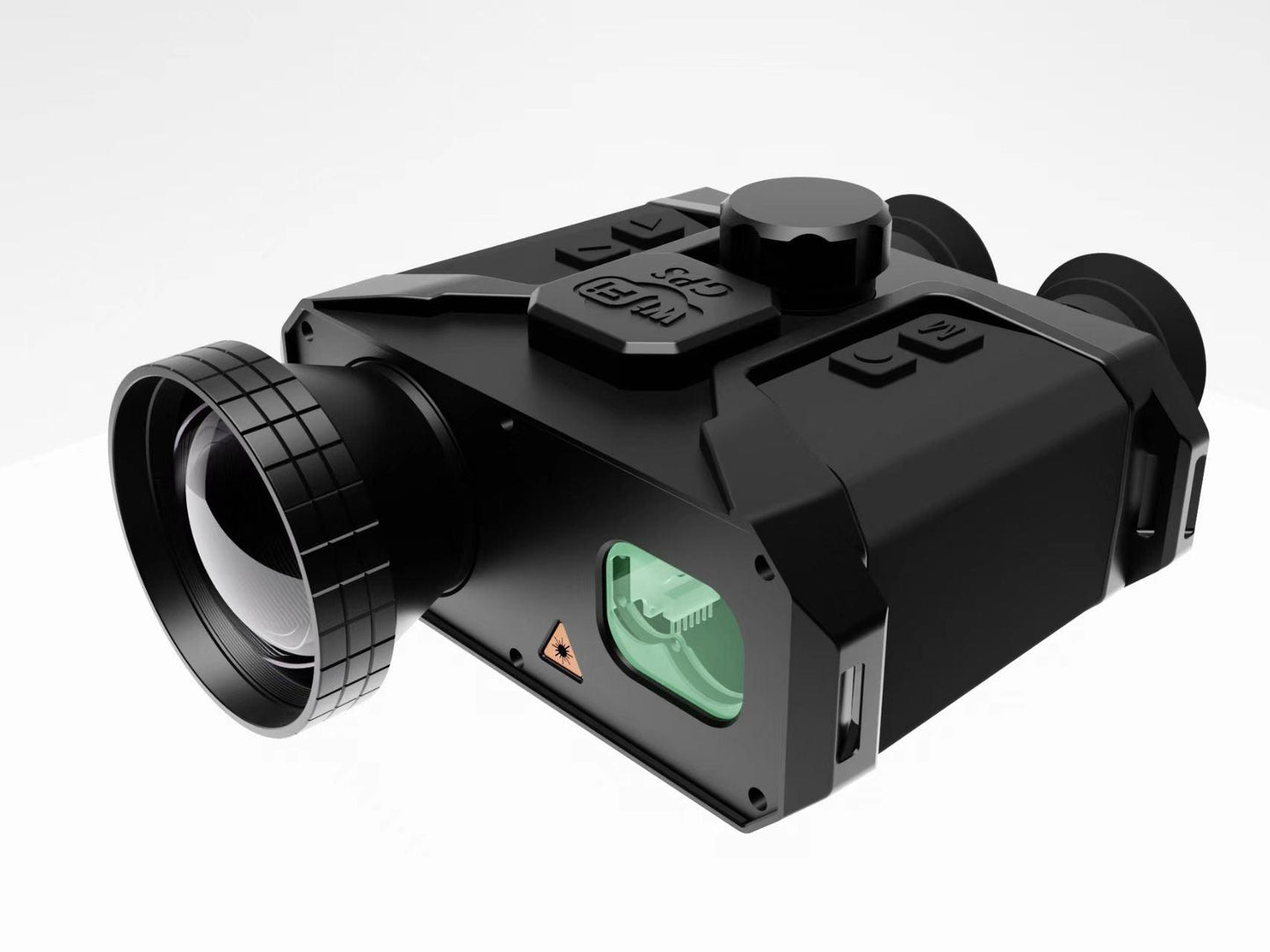

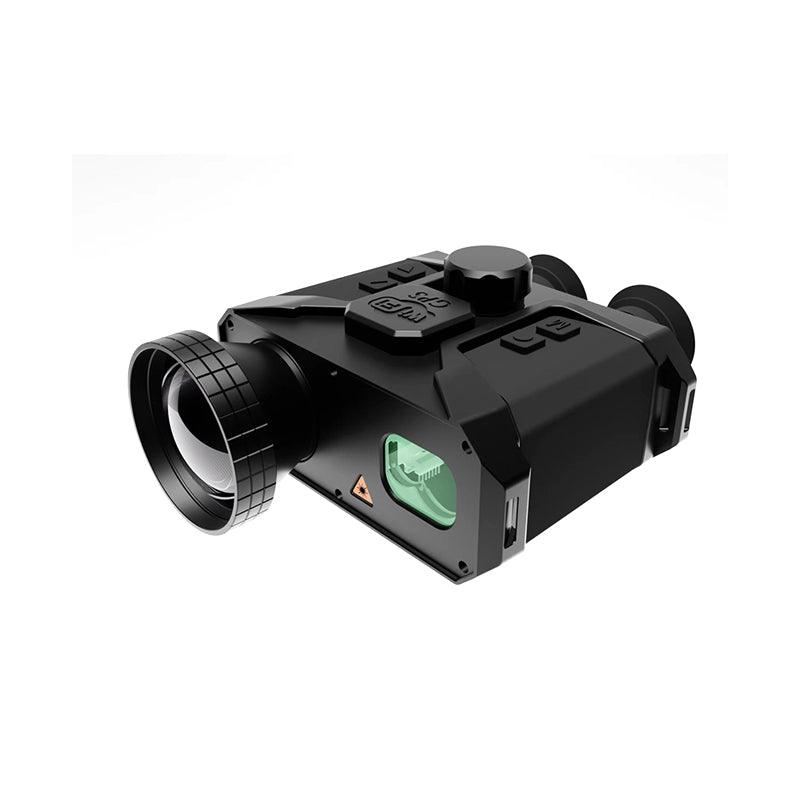

Thermax Pro Thermal Imaging Binoculars with 50mm Lens, 384×288 Resolution, 5km Laser Rangefinder, and 12-Hour Battery Life

Thermax Pro Thermal Imaging Binoculars with 50mm Lens, 384×288 Resolution, 5km Laser Rangefinder, and 12-Hour Battery Life

Normaler Preis $1,400.00 USD
Normaler Preis Verkaufspreis $1,400.00 USD
Sale Ausverkauft
Versand wird beim Checkout berechnet

SKU:GS-TH384

How to place an order

  1. Contact Us: Reach out to us via email at info@gushinoptics.com or WhatsApp at +1 832 398 2934.
  2. Proforma Invoice: We will issue a Proforma Invoice detailing your order, including pricing and payment instructions.
  3. Confirm Payment: Confirm your payment as per the Proforma Invoice.
  4. Production: Once payment is confirmed, we will proceed with the production of your order.
  5. Shipping: Your order will be shipped according to the agreed-upon lead times and shipping method.
  6. Contact Us: If you have any questions or need assistance at any stage of the ordering process, our customer service team is available to help.

What is OEM and ODM process?

Partner with Us - Custom Rifle Scopes | Gushin Optics

At Gushin Optics, we specialize in delivering high-quality OEM and ODM rifle scopes tailored to your exact specifications. Whether you're designing a unique product or customizing an existing model, our team ensures precision, performance, and reliability at every step.

Our Professional Workflow

🔍

Consultation & Design

We start by understanding your requirements. Our experts collaborate with you to design the ideal rifle scope based on your vision and performance needs.

🛠️

Prototyping & Development

Once the design is finalized, we move on to prototyping, testing all components to ensure they meet your specifications before production begins.

📦

Manufacturing & Quality Control

After final approval, we proceed with manufacturing. Our rigorous quality control ensures that every scope meets the highest standards of durability and precision.

🚚

Delivery & After-Sales Support

Once your custom scopes are ready, we ensure fast delivery and offer ongoing support for any inquiries or adjustments post-purchase.

Contact Us

If you’re ready to start your custom rifle scope project or have any questions, don’t hesitate to reach out!

Email Us Contact on WhatsApp

Can we negotiate the price?

Thank you for considering Gushin Optics. While we typically maintain our pricing, we are open to discussing it, especially based on the quantity of your order. Our margin is generally 13%, and we strive to offer competitive pricing while maintaining the quality of our products. Your satisfaction is important to us, so please feel free to discuss your requirements, and we will do our best to find a suitable solution for you.

What is your price term on Website?

The price term on our website is FOB (Free on Board). This means the price includes all costs up to loading the goods onto the vessel at the specified port. For buyers, FOB offers transparent pricing, control over shipping, potential cost savings, flexibility in shipping arrangements, and reduced risk exposure.

Vollständige Details anzeigen

Introduction

Introducing our latest innovation in thermal imaging technology – GS-TH384 Thermal Binoculars. Designed to deliver unmatched performance in both professional and recreational applications, this model combines advanced thermal imaging, superior optics, and precision engineering to meet the needs of hunters, outdoor enthusiasts, security personnel, and search-and-rescue teams.


Description

The GS-TH384 Thermal Binoculars are equipped with a high-resolution uncooled VOx detector and a powerful laser rangefinder, offering exceptional clarity, accuracy, and versatility. With a detection range of up to 3.5 km for vehicles and 1.2 km for humans, this device provides unparalleled visibility in complete darkness, fog, or challenging weather conditions. Its lightweight, rugged design with IP66 protection ensures durability and reliability in extreme environments.

Integrated features such as 2.4G Wi-Fi image transmission, GPS positioning, and multiple magnification options (1X/2X/4X/8X) make this model an indispensable tool for modern outdoor exploration and professional surveillance.


Key Features

  1. Advanced Thermal Imaging:

    • Uncooled VOx FPA detector with 384×288 resolution and <40mK NETD for superior sensitivity and clear thermal images.
    • Spectral range of 8–14 μm and 50Hz frame rate for smooth and accurate tracking.
  2. High-Performance Laser Rangefinder:

    • Rangefinder with a wavelength of 1535nm and a range distance of up to 5 km.
    • ±1m accuracy ensures reliable measurements in diverse terrains.
  3. Daylight Camera Use:

    • CMOS sensor with 1920×1080 resolution for high-definition daylight observations.
  4. Exceptional Optics:

    • 50mm objective lens with F1.0 aperture for optimal light gathering.
    • Field of View (FOV) of 5.3°×4.0° and manual focusing for sharp and detailed imaging.
  5. Photo & Video Recording:

    • Supports JPEG photo and MPEG4 video recording with built-in 16GB storage.
    • USB-A 2.0 interface for seamless file transfer.
  6. Ergonomic Design:

    • Compact dimensions (L181×W200×H83 mm) and lightweight at 1.1 kg for easy portability.
    • Built-in magnetic compass and GPS/BD positioning for navigation assistance.
  7. Durability in Extreme Environments:

    • IP66 waterproof rating with a rugged 6061 aluminum housing.
    • Operating temperature range: -30°C to +60°C; storage temperature: -40°C to +65°C.
  8. Power Efficiency:

    • Powered by dual 18650 rechargeable Li-ion batteries with 12+ hours of continuous operation.
    • Low power consumption (<2.5W) for extended field usage.
  9. Connectivity:

    • 2.4G Wi-Fi image transmission for real-time sharing.
    • Reflective OLED display with a resolution of 1024×768 px for sharp visuals.

Technical Specifications

Main Parameters

  • Detector Type: Uncooled VOx FPA
  • Resolution: 384×288 @ 12 μm
  • Spectral Range: 8–14 μm
  • Frame Rate: 50Hz
  • NETD: <40mK @ 27°C F#1.0

Image Processing

  • Boot Time: <8s
  • Noise Reduction: Digital Filtering
  • Magnification: 1X/2X/4X/8X

Lens System

  • Focal Length: 50mm F1.0
  • FOV: 5.3°×4.0°
  • Objective Diameter: 50mm

Observation Distance

  • Human Detection: 1.2 km (Recognition: 0.6 km)
  • Vehicle Detection: 3.5 km (Recognition: 1.8 km)

Laser Rangefinder

  • Wavelength: 1535nm
  • Range Distance: 5 km
  • Accuracy: ±1m

Photo & Video Recording

  • Photo Format: JPEG
  • Video Format: MPEG4
  • Storage: 16GB; USB-A 2.0

Display

  • Panel: 2×0.39' OLED
  • Resolution: 1024×768 px
  • Eyepiece Magnification: 15×

Power

  • Battery: Dual 18650 rechargeable Li-ion batteries @ 4300mAh
  • Operating Power Consumption: <2.5W
  • Operating Hours: ≥12 hours

Environment

  • Protection Level: IP66
  • Operating Temperature: -30°C to +60°C
  • Storage Temperature: -40°C to +65°C

Physical

  • Weight: Product: 1.1 kg (Battery Weight: 2×50g)
  • Size: L181×W200×H83 mm
  • Color Options: Green, Black, and Custom Colors
  • Connectivity: GPS/BD, 2.4G Wi-Fi

OEM & ODM Services

At Gushin Optics, we specialize in providing comprehensive OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services for thermal imaging devices. Whether you need custom branding, product design modifications, or tailored features, we are equipped to deliver solutions that align with your vision.

Our OEM/ODM services include:

  1. Custom Branding: Add your logo, color schemes, and packaging designs to reflect your brand identity.
  2. Product Modifications: Adjust specifications, features, or designs to meet unique market demands.
  3. Prototyping & Testing: Collaborate with our R&D team to develop and refine your product.
  4. Manufacturing Excellence: Benefit from our state-of-the-art production facilities and rigorous quality control processes.
  5. After-Sales Support: Comprehensive support for product updates, troubleshooting, and customer satisfaction.

With years of expertise in thermal imaging technology, we are committed to creating high-quality products that exceed expectations. Partner with us to bring your vision to life.
