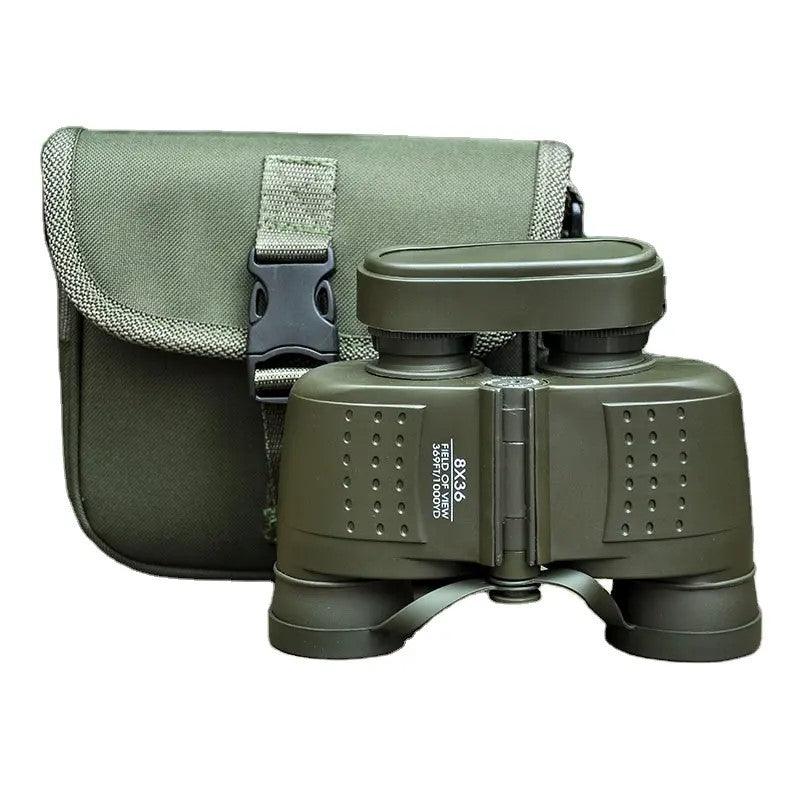

Thunderbolt 8X36 Military Binocular

Thunderbolt 8X36 Military Binocular

Order Quantity
Regular price $68.00 USD
Regular price Sale price $68.00 USD
Sale Sold out
Shipping calculated at checkout.

SKU:GS-YDM836

How to place an order

  1. Contact Us: Reach out to us via email at info@gushinoptics.com or WhatsApp at +1 832 398 2934.
  2. Proforma Invoice: We will issue a Proforma Invoice detailing your order, including pricing and payment instructions.
  3. Confirm Payment: Confirm your payment as per the Proforma Invoice.
  4. Production: Once payment is confirmed, we will proceed with the production of your order.
  5. Shipping: Your order will be shipped according to the agreed-upon lead times and shipping method.
  6. Contact Us: If you have any questions or need assistance at any stage of the ordering process, our customer service team is available to help.

What is OEM and ODM process?

Product Development Process

1. Ascertain Specifications


The first step in the process is to determine the exact specifications required for the product. This could include dimensions, materials, features, and any other relevant information.

2. Determine OEM/ODM Model


Once the specifications are determined, the manufacturer will assess if they have an existing OEM/ODM basic model that can be used. If not, they will proceed with designing a new product from scratch.

3. Optical Design


If the product requires optical components, such as a camera or lens, the manufacturer will design and submit optical performance values for approval.

4. Verify Optical Performance Approval


Once the optical design is complete, the manufacturer will verify the optical performance approval with the client.

5. Mechanism Design


After the optical design is approved, the manufacturer will move on to designing the exterior of the product. They will submit exterior drawings for approval by the client.

6. Verify Exterior Drawings Approval


Once the exterior drawings are approved, the manufacturer will verify the exterior drawings approval with the client.

7. Calculate Estimate and Prepare Sample


With the specifications and designs approved, the manufacturer will calculate an estimate for the project, including the cost of materials, labor, and any other necessary expenses. They will then prepare a sample estimate to present to the client.

8. Fabricate Sample


If the client approves the estimate, the manufacturer will proceed to fabricate a sample of the product for the client to review.

9. Shift to Quantity Production


Once the sample is approved, the manufacturer will shift to quantity production, manufacturing the agreed-upon number of products for the client.



Contact Information

WhatsApp: +1 (832) 398 2934
WeChat: +86-17623002808

Addresses

Factory Address: Community 1, Banqiao, Xindu Town, Xindu District, Chengdu City, China
Office Address: No.20-10, Qunhui Road 21, Nan'an District, Chongqing, China

Working Hours

China Mainland Time (GMT+8): Monday to Friday, 9:00 AM to 6:00 PM
United States Eastern Time (GMT-5): Sunday to Thursday, 9:00 PM to 6:00 AM
United States Central Time (GMT-6): Sunday to Thursday, 8:00 PM to 5:00 AM
United States Pacific Time (GMT-8): Sunday to Thursday, 6:00 PM to 3:00 AM

Additional Information

For inquiries, please email: info@gushinoptics.com

© 2024 Gushin Optics. All rights reserved.

Can we negotiate the price?

Thank you for considering Gushin Optics. While we typically maintain our pricing, we are open to discussing it, especially based on the quantity of your order. Our margin is generally 13%, and we strive to offer competitive pricing while maintaining the quality of our products. Your satisfaction is important to us, so please feel free to discuss your requirements, and we will do our best to find a suitable solution for you.

What is your price term on Website?

The price term on our website is FOB (Free on Board). This means the price includes all costs up to loading the goods onto the vessel at the specified port. For buyers, FOB offers transparent pricing, control over shipping, potential cost savings, flexibility in shipping arrangements, and reduced risk exposure.

View full details

Introduction:

Experience the power and precision of the Thunderbolt 8X36 Military Binocular, a cutting-edge optical instrument designed for ground force and marine army operations. This binocular combines exceptional performance, rugged durability, and advanced features to provide military professionals with a tactical advantage in reconnaissance, surveillance, and target acquisition missions.

Precision Optics for Tactical Superiority

The Thunderbolt 8X36 Military Binocular features advanced optics, including a Porro prism system and individual focus adjustment, delivering sharp and detailed images in various lighting conditions. Its 8x magnification (minimum 7.6x) and 36mm objective diameter provide a clear and wide field of view, essential for identifying and tracking targets.

Built-in Rangefinder Reticle for Precision Distance Measurement

One of the key features of the Thunderbolt is its built-in Rangefinder Reticle, which allows users to accurately estimate the distance to targets. By comparing the size of the target to the markings on the reticle, users can calculate the distance using the Mil-dot formula, ensuring precise target acquisition.

Understanding the Mil-dot Formula

The Mil-dot formula is a simple but powerful tool for calculating distance. It is based on the principle of angular measurement, where one mil represents an angle of one milliradian, or 1/1000th of a radian. In the context of a Mil-dot reticle, the dots or markings are spaced at one mil intervals, both horizontally and vertically.

To use the Mil-dot formula, you need to know either the size of the target or a portion of it, as well as the angular size of that target in the reticle. Once you have these measurements, you can calculate the distance to the target using the following formula:

Distance = Size of Target / Angular Size of Target * 1000

For example, if a target is 1.8 meters tall and appears to be 4 mils tall in the reticle, you can calculate the distance to the target as follows:

Distance = 1.8 / 4 * 1000 Distance = 450 meters



Enhanced Features for Military Operations

In addition to its Rangefinder Reticle, the Thunderbolt is equipped with a range of features to enhance its performance in the field. The nitrogen-filled housing provides reliable performance in extreme environments, including waterproofing up to 1.5 meters for 30 minutes. The binocular is also tripod-mountable, allowing for extended surveillance operations, while the retractable eye cups ensure comfortable viewing during prolonged missions.

Durability and Reliability for the Toughest Conditions

Weighing 600 grams and encased in a rugged, armor-coated exterior, the Thunderbolt is built to withstand the harshest conditions. Its robust construction ensures long-term durability, making it the ideal optical tool for military professionals operating in challenging environments.

Ideal for Ground Force and Marine Army Operations

Whether used for reconnaissance, surveillance, or target acquisition, the Thunderbolt 8X36 Military Binocular is the ultimate optical tool for ground force and marine army personnel. Its exceptional performance, reliability, and precision make it a valuable asset in any military operation.

OEM Information:

Please refer to the OEM information for the Thunderbolt 8X36 Military Binocular.

Specifications:

  • Magnification: 8x (minimum 7.6x)
  • Objective Diameter: φ36mm
  • Exit Pupil Diameter: φ4.4mm (minimum φ4.0)
  • Eye Relief: 16.2mm (minimum 15.7mm)
  • Field of View - Angular: 7° (minimum 6.8°)
  • Resolution (Center): ≤6.2"
  • Dark Index: 16.7
  • Minimum Focus Distance: 12.8m
  • Relative Brightness: 19.4
  • Water Resistance / Proof: Water resistant up to 1.5m/30min
  • Weight (Binocular Only): 600g
  • Prism System: Porro prism system
  • Focus System: Individual focus
  • Armor: Yes
  • Tripod Mounting Screw: Yes
  • Retractable Eye Cups: Yes
  • Nitrogen Fill: Yes

Experience the Thunderbolt 8X36 Military Binocular and discover the difference precision optics can make in your mission success.
