Introduction:

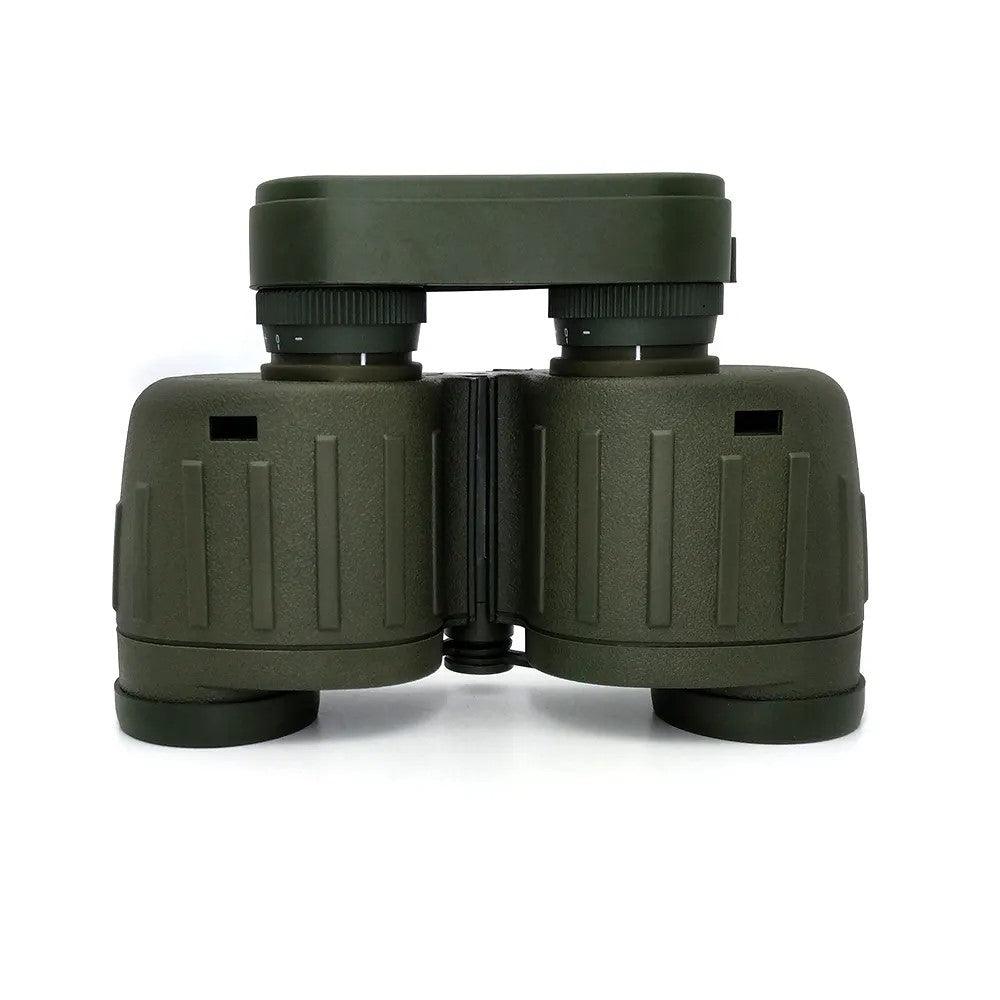

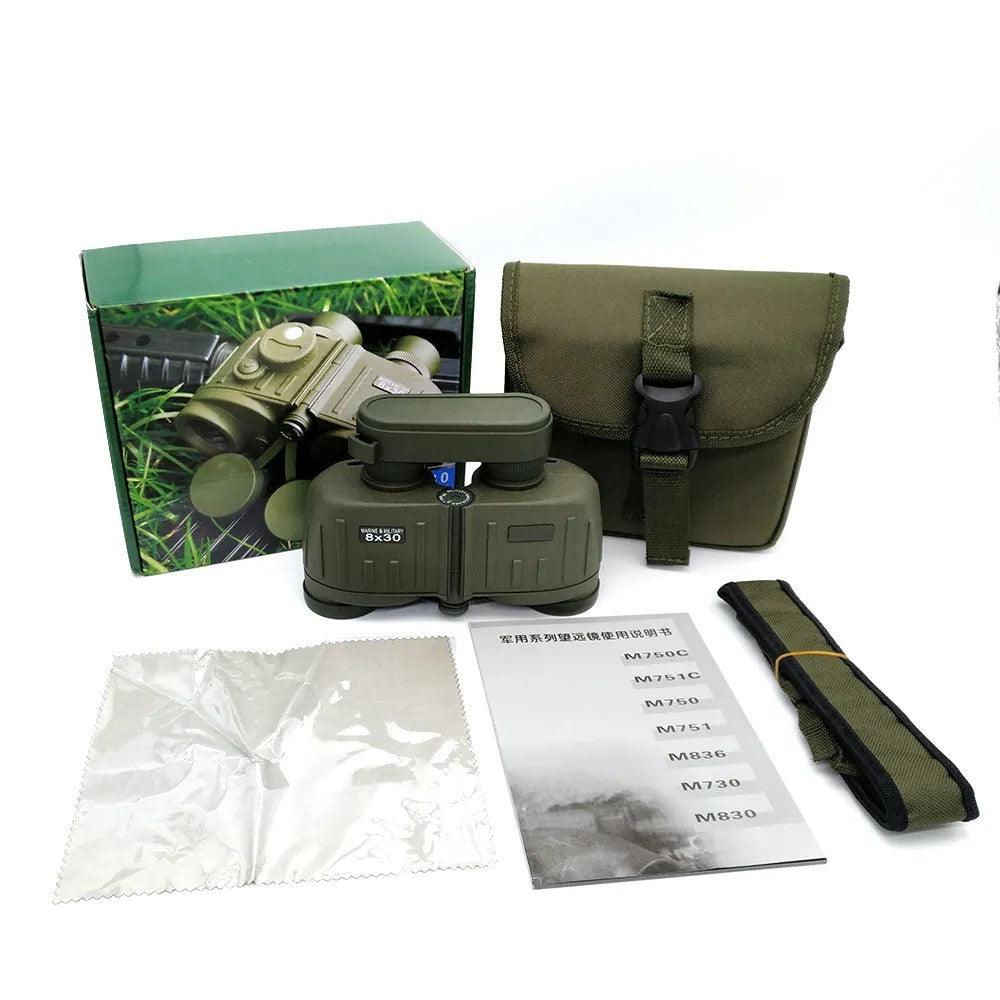

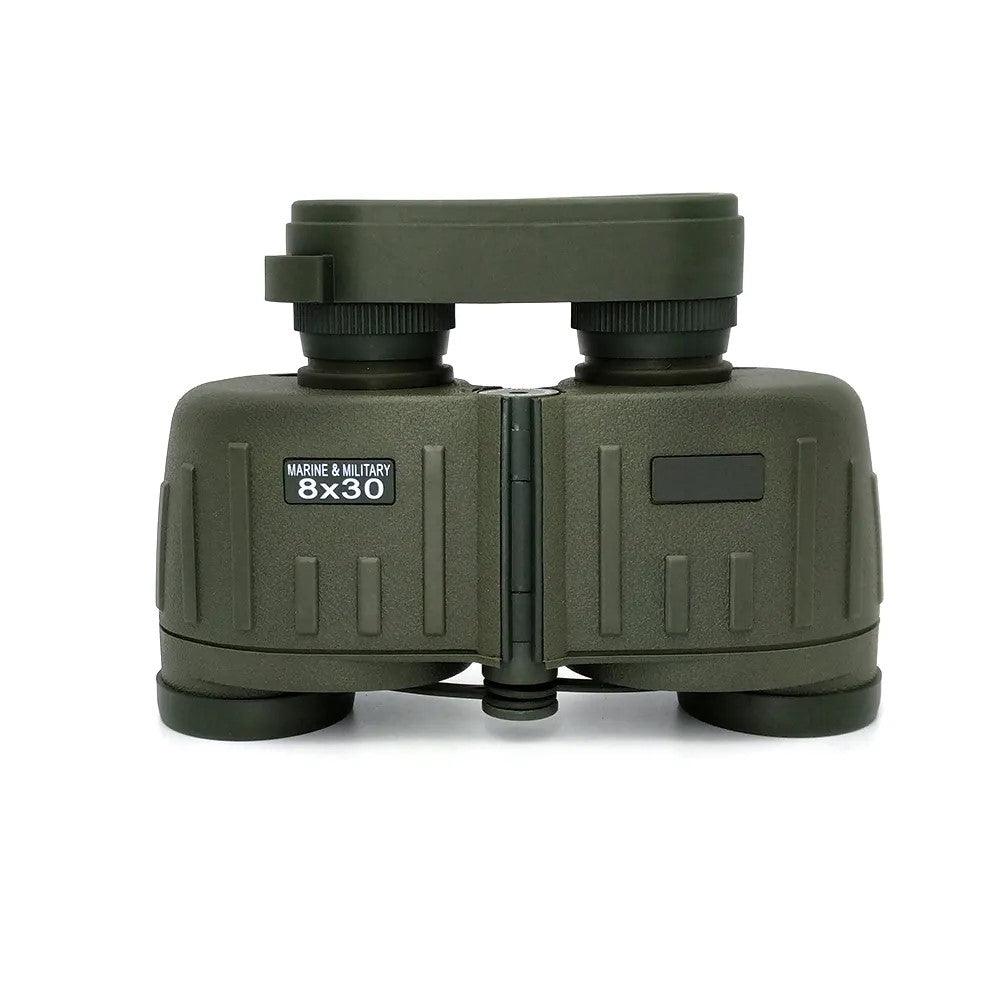

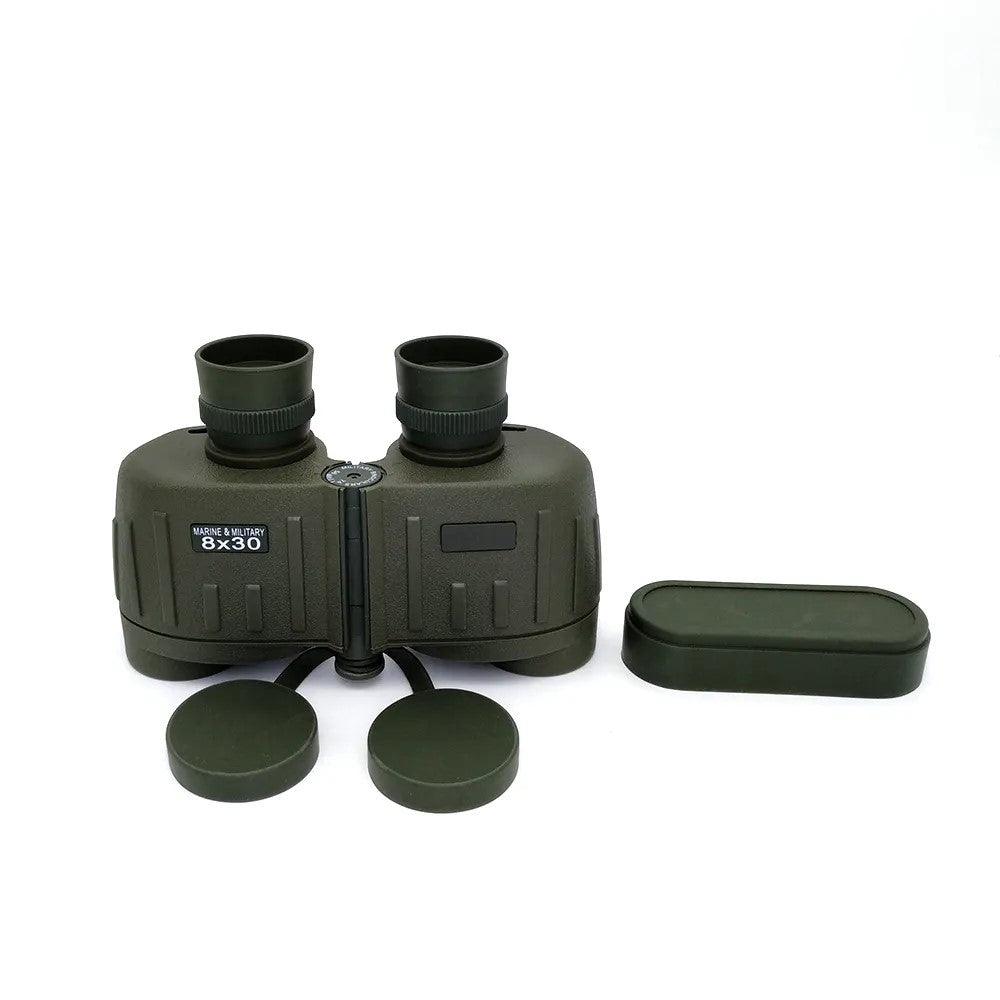

Introducing the East Wind 8X30 Military Binocular, a specialized optical tool designed for the rigorous demands of ground force and marine army operations. Built to deliver unparalleled performance, durability, and precision, this binocular is an essential companion for military professionals requiring clear and detailed vision in challenging environments.

Product Description:

Precision Optics for Tactical Advantage

The East Wind 8X30 Military Binocular is equipped with advanced optics, including a Porro prism system and individual focus adjustment, ensuring sharp and detailed images in any lighting condition. Its 8x magnification and 30mm objective diameter provide a clear and wide field of view, essential for reconnaissance, surveillance, and target acquisition missions.

Enhanced Features for Military Applications

Designed with the needs of ground force and marine army personnel in mind, this binocular features a built-in Rangefinder Reticle for precise distance measurements. The nitrogen-filled housing ensures reliable performance in extreme environments, including waterproofing up to 1.5 meters for 30 minutes, making it ideal for use in harsh conditions.

Durability and Reliability for Military Operations

Weighing only 575 grams and encased in a rugged, armor-coated exterior, the East Wind 8X30 Military Binocular is built to withstand the harshest conditions. Its tripod-mountable design allows for extended surveillance operations, while the retractable eyecups ensure comfortable viewing during long missions.

Ideal for Ground Force and Marine Army Operations

Whether used for reconnaissance, surveillance, or target acquisition, the East Wind 8X30 Military Binocular is the ideal optical tool for ground forces and marine army personnel. Its unmatched performance, reliability, and precision make it a valuable asset in any military operation.

Specifications:

• Magnification: 8x
• Objective Diameter: 30mm
• Exit Pupil Diameter: 4.3mm (minimum 4.0mm)
• Eye Relief: 16.5mm (minimum 15mm)
• Field of View - Angular: 8° (minimum 6.9°)
• Resolution (Center): ≤7.5"
• Dark Index: 14.5
• Minimum Focus Distance: 9.8m
• Relative Brightness: 18.5
• Water Resistance / Proof: Water resistant up to 1.5m/30min
• Weight (Binocular Only): 575g
• Prism System: Porro prism system
• Focus System: Individual focus
• Armor: Yes
• Tripod Mounting Screw: Yes
• Retractable Eye Cups: Yes
• Nitrogen Fill: Yes

The operation of Rangefinder Reticles.
Rangefinder reticle binoculars and scopes use a few different distance-calculating techniques. The simplest and most widely used method compares a scale or measurement marker on the reticle in the field of view of the scope, binocular, or monocular to a section of the thing that you are looking at that is known in size. This is commonly referred to as the Mil-Dot reticle in military and hunting circles, and the technique for calculating the distance is called the Mil-dot formula:


Mil-dot Formula
Therefore, using some basic algebra, you can determine the distance away from an item if you know its height or length. (Alternatively, you may figure out the object's height or length.)

As an illustration
Therefore, if you were on a yacht and you knew a lighthouse was sixty meters tall, and you were looking through your reticle rangefinder binoculars at it:

OEM Services: Gushin Optics offers OEM services, including custom branding, packaging, and design modifications to meet client specifications.
