Product Introduction

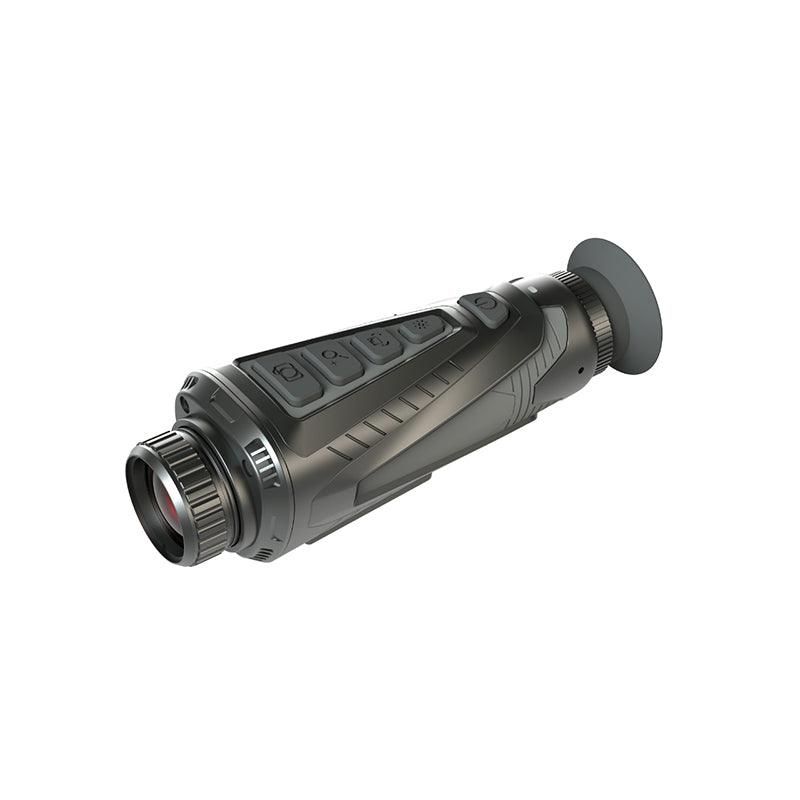

The TH-RXY500 Thermal Monocular is a state-of-the-art handheld infrared imaging device designed for outdoor enthusiasts, security professionals, and wildlife observers. With its high-resolution 384×288 uncooled infrared detector and advanced features like 60Hz frame rate, Wi-Fi support, laser pointer, and image/video capture, it delivers exceptional clarity and performance. The TH-RXY500 is built for versatility, providing accurate detection in challenging environments with a compact, ergonomic design.
Product Description
The TH-RXY500 Thermal Monocular combines cutting-edge thermal imaging technology with a sleek, portable design. Equipped with a 35mm lens and a 12 μm pixel pitch, this monocular offers unparalleled infrared detection and recognition capabilities for up to 3500 meters for vehicles and 2330 meters for humans. Its adjustable diopter, multiple color palettes, and intuitive controls make it ideal for long-range surveillance, wildlife tracking, or outdoor adventures.
With a rugged IP65-rated housing, the TH-RXY500 is built to withstand harsh environments. It features onboard photo and video capture with 16GB internal storage (expandable up to 128GB), making it an all-in-one solution for professionals and enthusiasts alike.
Key Features
-
High-Resolution Infrared Detection:
- 384×288 uncooled infrared focal plane array.
- <40mk thermal sensitivity for detailed imaging.
- Wide detection range: up to 3500 meters for vehicles.
-
Advanced Optical System:
- 35mm manual-focus lens with an F/0.98 aperture for precise targeting.
- 12.5X magnification and LCOS 1280×960 display for sharp visuals.
-
Intelligent Image Enhancements:
- 10 brightness and contrast levels for adaptability.
- Multiple palettes: White Hot, Black Hot, Red Hot, Thermal Metal, and more.
- Hotspot tracking for real-time object detection.
-
Versatile Functionality:
- Electronic zoom: 2X/4X/8X/16X.
- Built-in photo and video capture in JPG/MP4 formats.
- Wi-Fi connectivity for live sharing and control.
-
Durable and Portable:
- Compact size (198x68x68mm) and lightweight design (513g).
- IP65-rated protection for reliable performance in harsh environments.
- Operating temperatures from -20°C to +60°C.
-
Long Battery Life:
- Rechargeable 18650 lithium battery with up to 5 hours of runtime.
- Convenient USB Type-C port for charging and data transfer.
Specifications
Infrared Detector
- Type: Amorphous silicon uncooled infrared focal plane.
- Resolution: 384×288.
- Pixel Pitch: 12 μm.
- Frame Rate: 60Hz.
- Spectral Range: 8~14 μm.
- Thermal Sensitivity: <40mk at 300K.
Optical System
- Lens: 35mm, manual focus.
- Field of View: 7.5°×5.7°.
- Minimum Focus Distance: >1.0 meter.
Eyepiece
- Focal Length: 22mm.
- Exit Pupil Distance: 30.8mm.
- Exit Pupil Diameter: 6mm.
- Magnification: 12.5X.
Display
- Type: LCOS screen.
- Resolution: 1280×960.
- Size: 0.4 inches.
Functionality
- Zoom: 2X/4X/8X/16X.
- Palettes: Multiple modes (White Hot, Black Hot, Red Hot, etc.).
- Photo/Video: Supported (JPG/MP4 formats).
- Storage: 16GB (expandable up to 128GB).
- Wi-Fi: Supported.
- Additional Features: Laser pointer, illumination lamp, hotspot tracking, language support (English/Chinese).
Power Supply
- Battery: Built-in 18650 rechargeable lithium battery (3200mAh).
- Runtime: Up to 5 hours.
- Charging: USB Type-C.
Environmental Performance
- Operating Temperature: -20°C to +60°C.
- Storage Temperature: -30°C to +80°C.
- Shock Resistance: ≤30g.
- Protection: IP65.
Physical Dimensions
- Size: 198x68x68mm.
- Weight: 513g±5g.
OEM & ODM Services
As a professional thermal imaging manufacturer, we offer comprehensive OEM (Original Equipment Manufacturer) and ODM (Original Design Manufacturer) services tailored to your specific needs.
Our services include:
- Custom branding (logo printing, packaging design).
- Hardware adjustments (lens options, resolution, storage capacity).
- Firmware customization (interface, language options).
- Exclusive design for unique market differentiation.
With advanced production facilities and a skilled R&D team, we ensure high-quality, cost-effective solutions for partners looking to expand their thermal imaging product lineup.
