Reticle

Core Bullseye Circle-Dot

Core Bullseye Circle-Dot

ushin Optics’ Core Bullseye Circle‑Dot Reticle features a 68 MOA speed ring surrounding a precision 1 MOA center dot, optimized for rapid target acquisition and delivers three practical aiming points. These ballistic references are calibrated for .223 Caliber, 62‑grain ammunition at 2,900 fps muzzle velocity. While compatible with other calibers and loads, users must independently verify and establish real‑world distances for each aiming mark when switching ammunition types. When mounted on shotguns, the large 68 MOA ring serves as a visual reference for expected shot spread; actual shot pattern dimensions will vary dependent on choke configuration and shotshell selection.

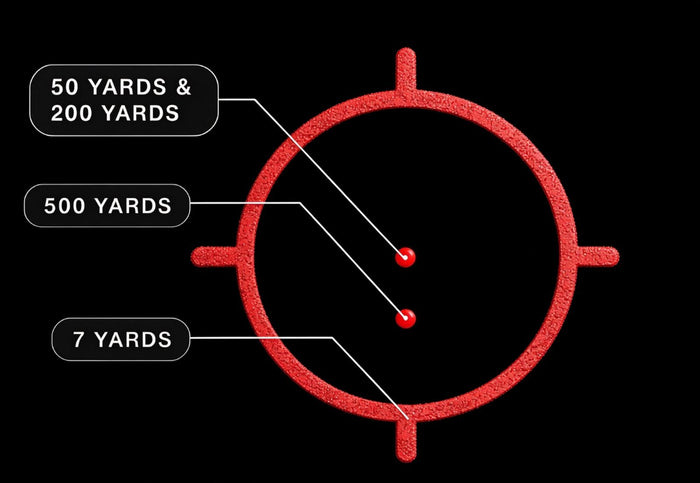

Dual‑Dot Holdover Reticle

Dual‑Dot Holdover Reticle

Built for extended‑range holdover capability, this reticle features a 68 MOA speed ring with two vertical 1 MOA aiming dots. Use the upper dot for your 50 yd / 200 yd zero, the lower dot as a 500 yd bullet‑drop reference, and the ring bottom for 7 yd close‑range targets. Calibrated for .223 62‑gr 2,900 fps. Operators should validate holdover values when switching ammunition. On shotguns, the ring serves as a visual reference for shot patterns affected by choke and shell choice.

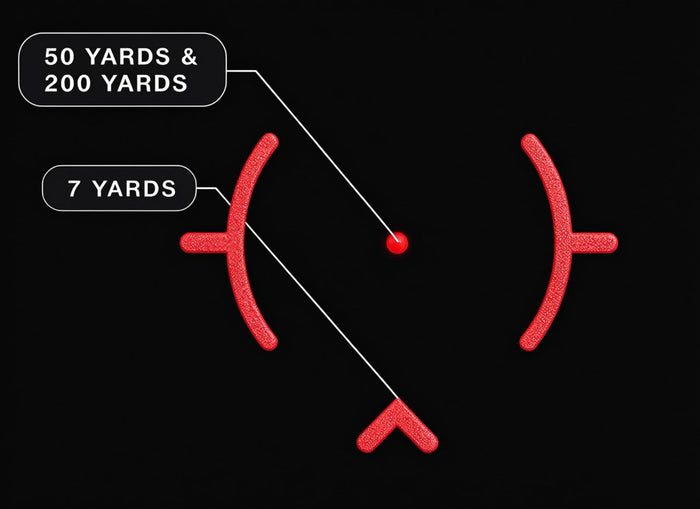

Core Danger‑Close DCR Reticle

Core Danger‑Close DCR Reticle

Optimized for CQB operations, this reticle features a cut‑top 68 MOA speed ring, 1 MOA central aiming dot, and a bottom‑mounted chevron for 7‑yard danger‑close engagements. Center dot zeroed for 50 yd / 200 yd. Calibrated for .223 62‑gr 2,900 fps. Confirm aiming offsets when switching ammunition. For shotguns, ring provides visual reference for shot patterns subject to choke and shell choice.

Tested for demanding use

Durability test

See how this optic performed through durability testing conducted per MIL-STD-810G.

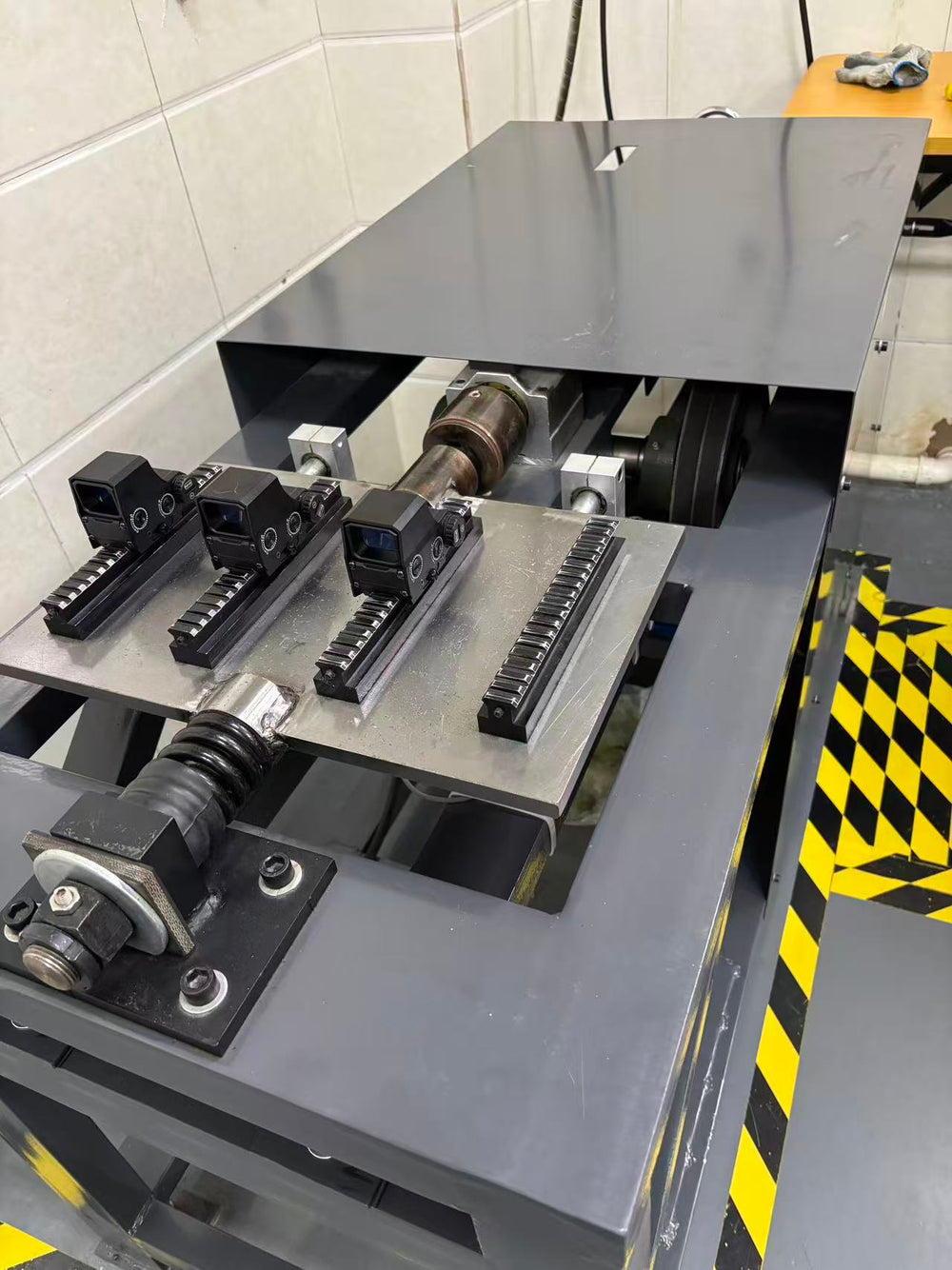

Impact resistance
Test 1

Impact resistance

Impact Test | MIL‑STD‑810G Method 516.6

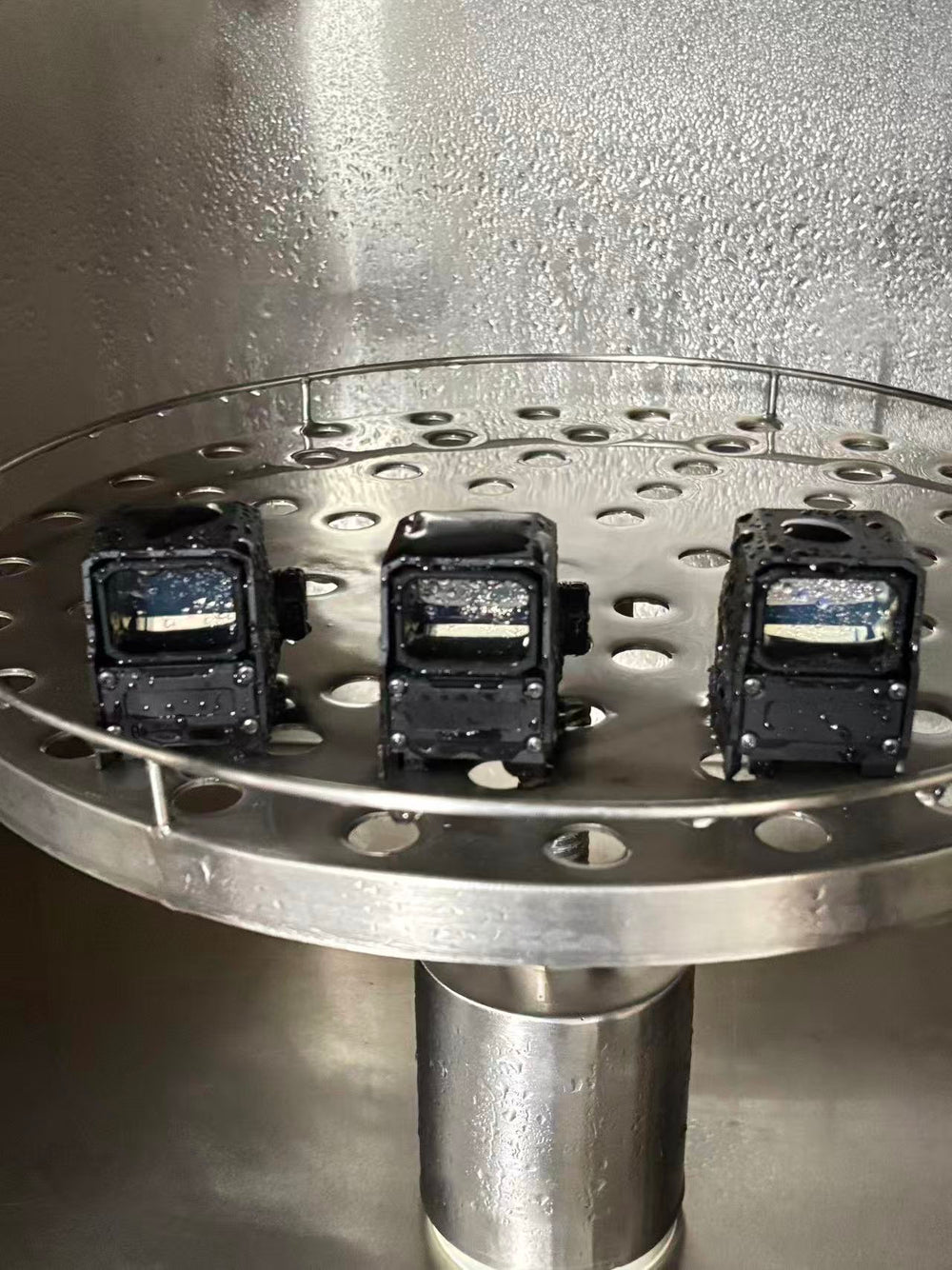

Rain Test
Test 2

Rain Test

Rain Test | MIL‑STD‑810G Method 506.6 All‑Direction Heavy Storm Simulation

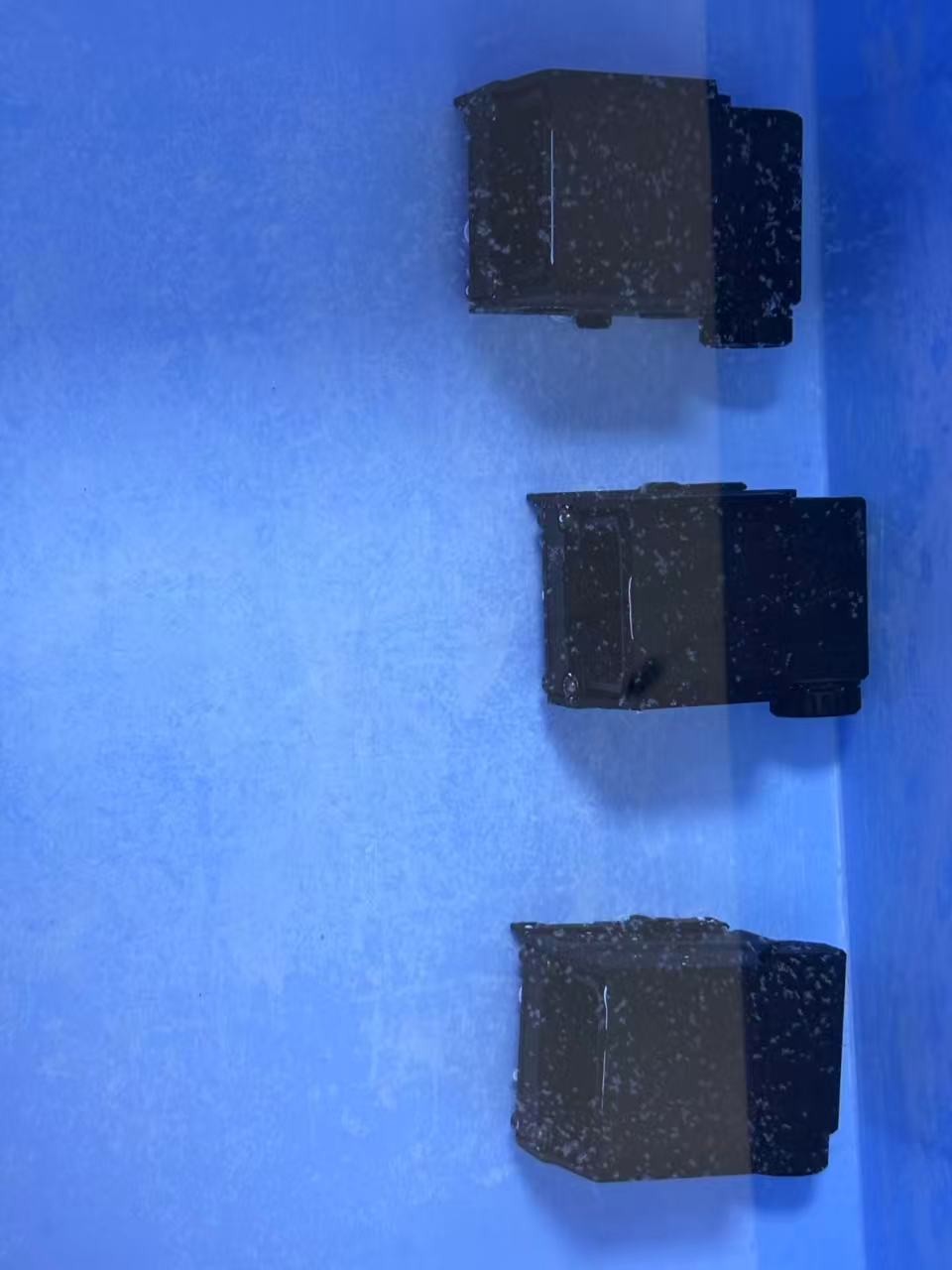

Immersion Test
Test 3

Immersion Test

Immersion Test | MIL‑STD‑810G Method 512.6

Test conditions and results may vary by configuration. Refer to the product documentation for specific test details.

Holographic sight features

Built for dependable performance across demanding conditions.

  • 1× non-magnified opticUnlimited eye relief supports both-eyes-open shooting.

  • Two reticle optionsStandard circle-dot or 2-dot bullet-drop holdover reticle.

  • Day and night compatible20 daylight brightness levels and 10 NV-intensity levels.

  • Precision adjustment0.5 MOA per click; at least ±40 MOA windage and elevation.

  • QD Picatinny mountMIL-STD-1913 compatible; designed for repeat zero retention after remounting.

  • Heavy-duty constructionMIL-STD-810G qualified with 1200G shock resistance.

  • IP68 waterproof and dustproofRated for 1 meter of submersion for 30 minutes.

  • CR123A battery systemAt least 1,000 hours runtime, reverse-battery protection, low-battery flash alert and auto shut-off.

  • Class I laser productStated to comply with applicable US laser safety standards.

  • Compact, lightweight housingApproximately 260 g with battery.

Specifications

Magnification1× (±10 %)
Reticle / Window Size30 mm × 23 mm (30.8 mm × 23 mm typical)
Reticle PatternStandard: 68 MOA ring with four 1 MOA ticks + one 1 MOA dot
Optional 2-Dot: 68 MOA ring with two 1 MOA dots (same pattern as EOTech 2-Dot reticle)
Parallax≤ 2 MOA (measured 1 MOA)
Adjustment Range≥ ±40 MOA windage / elevation (typ. ±50 MOA)
Click Value0.5 MOA ± 15 %
Zero Retention (incl. re-mounting)≤ 1 mil (≤ 2 MOA measured)
Brightness Levels20 (day mode) / 10 (night vision mode)
Power Supply1 × CR123A battery (reverse-polarity protected)
Battery Life≥ 1000 h at medium level 5, 25 °C ± 5 °C
Low-Battery WarningReticle flashes below 5 % battery level
Dimensions≤ 75 × 52 × 62 mm (L × W × H); typical 73 × 52 × 62 mm
Weight≤ 300 g with battery (typical 260 g)
Mounting InterfacePicatinny rail (MIL-STD-1913)
EnvironmentalOperating: −40 °C to +65 °C (typ.); Storage: −45 °C to +70 °C
Shock Resistance1200 G, 400 shocks (MIL-STD-810G Method 516.6)
Ingress ProtectionIP68 (IEC 60529)
Drop26 drops from 120 cm onto 8-ply plywood in packaging (MIL-STD-810G transit drop)
Laser SafetyClass I laser product — 21 CFR 1040.10/1040.11; IEC 60825-1 Ed. 3 (Laser Notice No. 56)
