Gushin Hunting Scopes Reticles
Compare the available reticle designs for your scope.
Classic Duplex Hunting Reticle
4A European Hunting Reticle
Mil Dot Reticle
4A MOA Reticle
Post Duplex BDC Illuminated Reticle

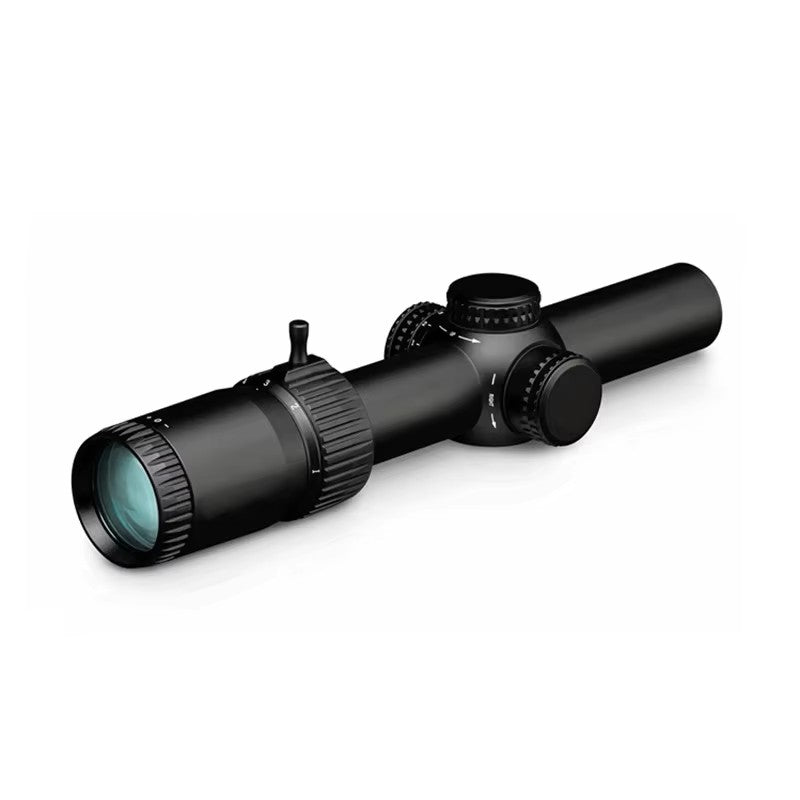

Hunting Lightweight LPVO 1-6X24 SFP
This 1-6×24 IR LPVO riflescope features a second focal plane illuminated green metal reticle, with reliable 1000G shock resistance, fully multi-coated optics and fast focusing system. Versatile for close to mid-range applications, it delivers clear sight picture with consistent eye relief and precise 0.5 MOA adjustment.
| Item | Specification |
|---|---|
| Model | 1-6×24 IR |
| Magnification | 1× – 6× |
| Objective Lens Diameter | 24 mm |
| Focal Plane | Second Focal Plane (SFP) |
| Main Tube Diameter | 30 mm |
| Tube Material | 6061-T6 Aluminum |
| Surface Finish | Hard Anodized |
| Body Color | Black / Silver |
| Reticle Type | Metal Reticle |
| Illuminated Reticle | Yes, Green Illumination |
| Battery Type | CR2032 |
| Eye Relief | 110 mm @ 1× / 88 mm @ 6× |
| Field of View | 99.3 ft @100yds (1×) / 16.6 ft @100yds (6×)
|
| Exit Pupil | 16 mm @1× / 4 mm @6× |
| Lens Coating | Fully Multi-Coated (FMC) |
| Light Transmission | 85% |
| Adjustment Increment | 0.5 MOA per click |
| Clicks per Revolution | 60 Clicks |
| Total Elevation Adjustment | 100 MOA |
| Total Windage Adjustment | 100 MOA |
| Parallax Focus | Yes, Parallax Setting: 100 yds |
| Fast Focusing System | Yes |
| Recoil Resistance | 1000G / 100 times |
| Waterproof | Yes |
| Fogproof | Yes |
| Shockproof | Yes |
| Net Weight | 571 g |
| Sunshade | Optional |
| Mounts | Optional |
